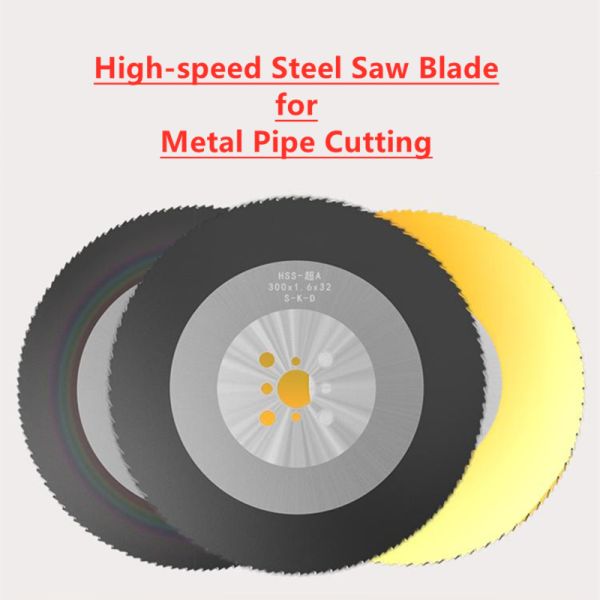

High Performance High-Speed Steel Saw Blades
Suitable For Various Metal Pipes Cutting
Blade Type: HSS-002
Image Sample Specification:
-
300*1.6*32*200(Out Diameter * Thickness * Inner Hole* Teeth No.)
-
Material: Cobalt bearing high speed steel
Processing Applications of Tungsten Steel Saw Blade:
-
Suitable for cutting stainless steel,carbon steel pipe, copper pipe, aluminum pipe, etc
-
Suitable for dry cutting.
Main Features of High-speed Steel Cutting Blade:
-
Fast Speed
-
Smooth Cutting
-
Not Easy To Break
-
Long Service Life
-
Low cost
Different sizes and types availbale here:
-
Different sizes availble
-
Teeth Numbers according to cutting object.
-
Special sizes can be customized
| Running Sepcification of High-speed Steel Saw Blades | Unit: mm |
| Out Diameter | Thickness | Inner Hole | Applications |
| 250 | 1.0 | 32 / 25,4 | Suitable for cutting thin aluminum, plastic steel, aluminum alloy, solid wood, artificial board, plywood, acrylic board |
| 250 | 1.2 | 32 / 25,4 |
| 250 | 1.5(1.6) | 32 |
| 250 | 2.0 | 32 / 40 / 25,4 |
| 250 | 2.5 | 25,4 / 32 / 40 |
| 250 | 3.0 | 40 / 32 |
| 275 | 1.2 | 32 |
| 275 | 1.6 | 32 / 40 |
| 275 | 2.0 | 32 / 40 |
| 275 | 2.5 | 32 / 40 / 25,4 |
| 275 | 3.0 | 32 / 40 / 50 |
| 300 | 1.2 | 32 / 40 |
| 300 | 1.6 | 32 / 40 |
| 300 | 2.0 | 32 / 40 |
| 300 | 2.5 | 32 / 40 |
| 300 | 3.0 | 32 / 40 |
| 315 | 1.6 | 32 / 40 |
| 315 | 1.8 | 32 / 40 |
| 315 | 2.0 | 32 / 40 |
| 315 | 2.5 | 32 / 40 |
| 315 | 3.0 | 32 / 40 |
| 315 | 3.5 | 32 / 40 |
| 325 | 2.0 | 32 / 40 |
| 325 | 2.5 | 40 / 32 |
| 325 | 3.0 | 32 / 40 / 50 |
| 350 | 1.6 | 32 / 40 / 50 |
| 350 | 1.8 | 32 / 40 / 50 |
| 350 | 2.0 | 32 / 40 / 50 |
| 350 | 2.5 | 32 / 40 / 50 |
| 350 | 3.0 | 32 / 40 / 50 |
| 350 | 3.5 | 32 / 40 / 50 |
| 370 | 2.0 | 32 / 40 / 50 |
| 370 | 2.5 | 32 / 40 / 50 |
| 370 | 3.0 | 32 / 40 / 50 |
| 370 | 3.5 | 32 / 40 / 50 |
| 400 | 2.0 | 32 / 40 / 50 |
| 400 | 2.2 | 32 / 40 / 50 |
| 400 | 2.5 | 32 / 40 / 50 |
| 400 | 3.0 | 32 / 40 / 50 |
| 400 | 3.5 | 32 / 40 / 50 |
| 400 | 4.0 | 32 / 40 / 50 |
| 425 | 2.0 | 32 / 40 / 50 |
| 425 | 2.5 | 32 / 40 / 50 |
| 425 | 3.0 | 32 / 40 / 50 |
| 425 | 3.5 | 32 / 40 / 50 |
| 425 | 4.0 | 32 / 40 / 50 |
| 450 | 2.0 | 32 / 40 / 50 |
| 450 | 2.5 | 32 / 40 / 50 |
| 450 | 3.0 | 32 / 40 / 50 |
| 450 | 3.5 | 32 / 40 / 50 |
| 450 | 4.0 | 32 / 40 / 50 |
| 500 | 2.5 | 32 / 40 / 50 |
| 500 | 3.0 | 32 / 40 / 50 |
| 500 | 3.5 | 32 / 40 / 50 |
| 500 | 4.0 | 32 / 40 / 50 |
| 500 | 5.0 | 32 / 40 / 50 |
| 525 | 3.5 | 32 / 40 / 50 |
| 525 | 4.0 | 32 / 40 / 50 |
| 550 | 3.0 | 32 / 40 / 50 |
| 550 | 3.5 | 32 / 40 / 50 |
| 550 | 4.0 | 32 / 40 / 50 |
| 550 | 5.0 | 32 / 40 / 50 |
| 560 | 3.0 | 32 / 40 / 50 |
| 560 | 3.5 | 32 / 40 / 50 |
| 560 | 4.0 | 32 / 40 / 50 |
| 560 | 5.0 | 32 / 40 / 50 |
| 600 | 3.0 | 32 / 40 / 50 |
| 600 | 3.5 | 32 / 40 / 50 |
| 600 | 4.0 | 32 / 40 / 50 |
| 600 | 5.0 | 32 / 40 / 50 |
| 630 | 4.0 | 32 / 40 / 50 |
| 630 | 5.0 | 32 / 40 / 50 |
Teeth Recommend:
| Blade Diameter ► | 250 | 275 | 300 | 325 | 330 | 350 | 400 |
| Pipeline Thickness▼ | Number of Teeth to Fit |
| 0.6 | 280T | 280T | 320T | 320T | 350T | 380T | 410T |
| 0.8 | 240T | 280T | 320T | 320T | 320T | 350T | 380T |
| 1 | 220T | 240T | 280T | 280T | 320T | 350T | 380T |
| 1.2 | 200T | 220T | 240T | 240T | 280T | 320T | 350T |
| 1.5 | 180T | 200T | 220T | 240T | 240T | 280T | 320T |
| 1.6 | 180T | 200T | 220T | 220T | 240T | 280T | 320T |
| 2 | 150T | 180T | 200T | 220T | 220T | 240T | 280T |
| 2.5 | 140T | 180T | 200T | 220T | 220T | 240T | 280T |
| 3 | 120T | 150T | 180T | 200T | 220T | 240T | 280T |
| 19 | 120T | 120T | 128T | 128T | 150T | 220T | 240T |
| 22 | 120T | 120T | 128T | 128T | 150T | 220T | 240T |
| 25.4 | 90T | 90T | 110T | 120T | 128T | 150T | 220T |
| 38.1 | 80T | 90T | 100T | 110T | 120T | 128T | 150T |
| 50 | 60T | 64T | 80T | 90T | 110T | 120T | 128T |
The company can customize all kinds of products according to customers' needs, and establish detailed customer files to ensure customers' needs. Our company will strictly abide by this commitment and related contracts, fulfill the responsibilities and obligations!
More Pictures of High-speed Steel Dicing Blade:
Ordering instructions:
When you order for the first time, please provide the following parameters, so that we can help you choose the most suitable cutting wheel.
Specification and size: abrasive, particle size, binder, outer diameter, thickness, inner diameter, abrasive working layer width, substrate thickness, etc. purpose: workpiece name, cutting size, cutting material;
Service conditions of grooving and cutting: machine tool, grinding wheel speed, feed speed and cutting depth;
Dry and wet cutting requirements: cutting accuracy, chipping requirements, processing surface integrity, etc
Special requirements: whether the tool is assembled and used, whether the resin cutting wheel needs to conduct electricity, whether the outer circle of the cutting wheel has a water tank, the size and quantity of the water tank, whether there is a chip removal groove on the outer side of the cutting wheel base, etc.
Order Operating Procedure:
FAQ:
Q: Do you accept trial order?
A: Yes, small order is available here.
Q: Do you provide samples ? is it free ?
A: Yes, we could offer the sample free of charge, but clients would bear for the courier freight charges.
Q: How long is your delivery time?
A: Usually 3 days for ready stocklots. and 5-15 days for new customed order, it is according to quantity.
Q: What is your terms of payment?
A: T/T, Western Union, Paypal, L/C, others.
Q: Can you provide OEM service?
A: Yes, we can produce the goods with clients' logo and brand.
Over 15 years of developing and producing experience in high precision super hard material tools, we have
established a high efficiency system to provide stable performance wheel products.
We welcome yr free inquiry for any question in our diamond cutting wheels. In order to supply exact wheel
type and quotatioon to you, if possible, better for you to provide us more information like followings:
1. Yr processing objects.
2. Yr OD, ID, Thickness data.
3. Grit size if possible.
4. Rotary speed of your processing machine.
